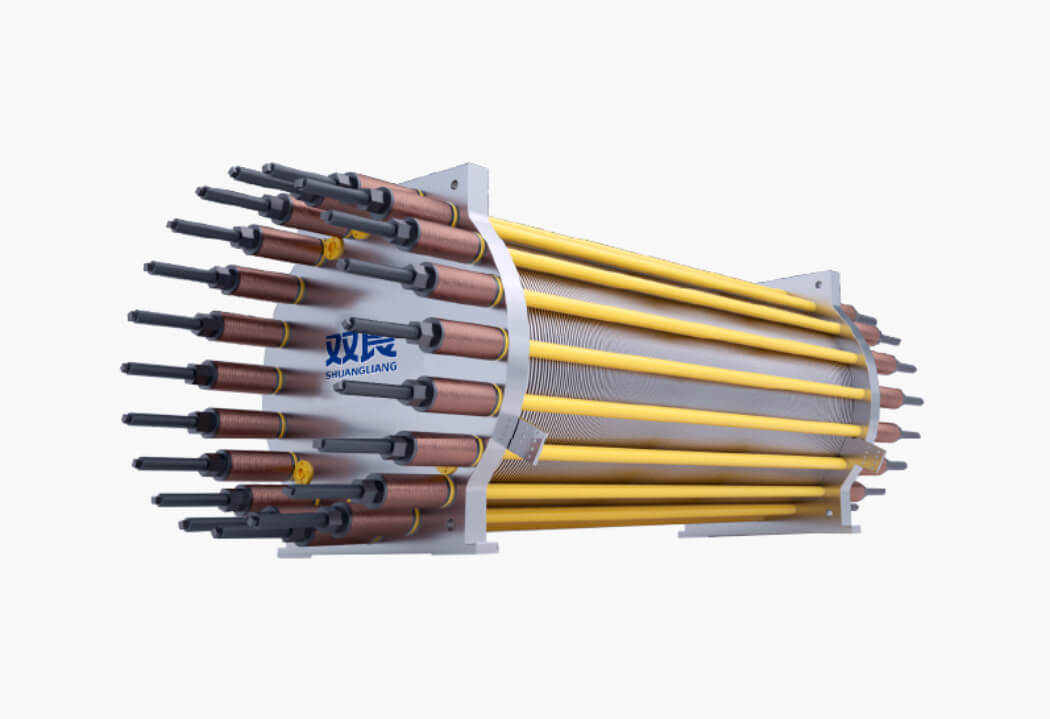

Alkaline Water Electrolyzer
SLZQ-2000
  • Large size single stack reduces footprint and Capex.
  • High efficiency saves OPEX for client.
  • Wide application in different industries.
  • Zero leakage of the lye.
Download
Operating Pressure
1.6-4.0 MPa
DC Power Consumption
3.9-4.5 KWh/Nm3
Load Range
20-110 %
Fast Response
10 %/s
Service Life
≥160,000 h

Specifications

Model SLZQ-2000 SLZQ-1500 SLZQ-1000 SLZQ-800
Hydrogen output (Nm3/h) 2000 1500 1000 800
DC Power Consumption 3.9~4.5 kWh/Nm3
Electric Current Density 2500~6000 A/m2
Purity (with purification) 99.9999%
Operating Temperature 90~110℃
Dimension (L×W×H)/m 6.0×2.5×2.8 5.5×2.4×2.6 5.7×2.3×2.4 5.2×2.3×2.4
